How to - Ubuntu 12.04 Touchscreen calibration

This guide is based on the Ubuntu Wiki - Multitouch documentation and various community forum posts.

This guide is intended as a relatively easy step by step mostly graphical (GUI) guide to:

  • Calibrate a touchscreen panel or monitor on Ubuntu 11.04 or later.

Requirements:

  • Ubuntu 11.04 or later installed machine.
  • Touchscreen panel or monitor. In this case a LG Flatron T1710 Monitor.




1. Install uTouch - Ubuntu Multitouch framework.

  • uTouch is installed by default in Ubuntu 11.04, if not installed on your system add it from the Software Center or with the following command.
  • Open the Terminal Window and enter :
sudo apt-get install utouch

2. Install xinput calibrator.

  • xinput calibrator is a easy GUI Touchscreen Calibration program for X.Org. Install it from the Ubuntu Software Center or using the command below.
  • Open the Terminal Window and enter :
sudo apt-get install xinput-calibrator

3. Use xinput calibrator to determine the x and y co-ordinates of your touchscreen.

  • Now we use xinput calibrator  to measure the xMin, xMax, yMin and yMax values of the touchscreen.
  • Launch xinput calibrator (Called Calibrate Touchscreen in the ubuntu program menus)

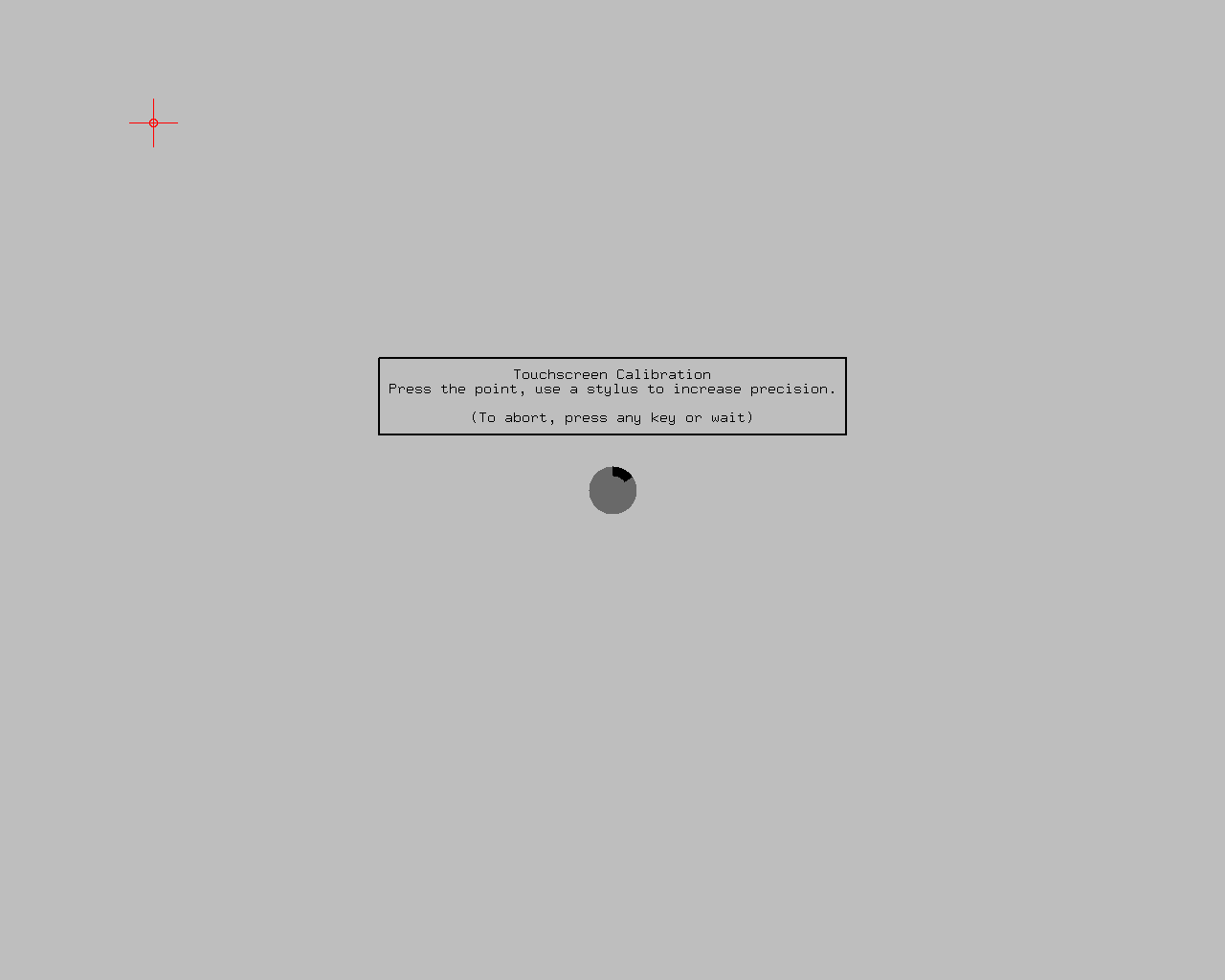

  • Use a stylus to tap the four registration point indicated in red on screen by the program.

4. Note the results from xinput calibrator.

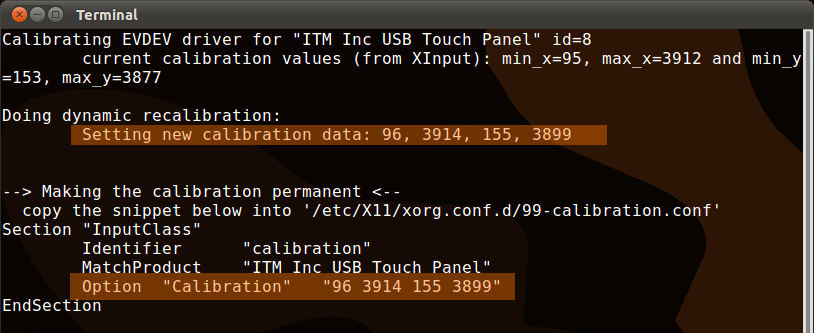

  • Make a note of the calibration data supplied by xinput calibrator, but ignore the instruction supplied regarding making the calibration permanent.



5. Update X11 evdev configuration.

  • Once you have determined the x and y co-ordinate information, you need to add it to the X11 configuration files, for the evdev driver, the default installed driver used for handling Touchscreen input events.
  • The X11 configuration for the Touchscreen can be found in the ​/usr/share/X11/xorg.conf.d/10-evdev.conf file.
  • Edit the file, find the Touchscreen InputClass and add: Option "Calibration"  "xMin xMax yMin yMax"
  • Replace the xMin, xMax, yMin and  yMax values with your values obtained in step 4.
  • Open the Terminal Window and enter :
sudo gedit /usr/share/X11/xorg.conf.d/10-evdev.conf

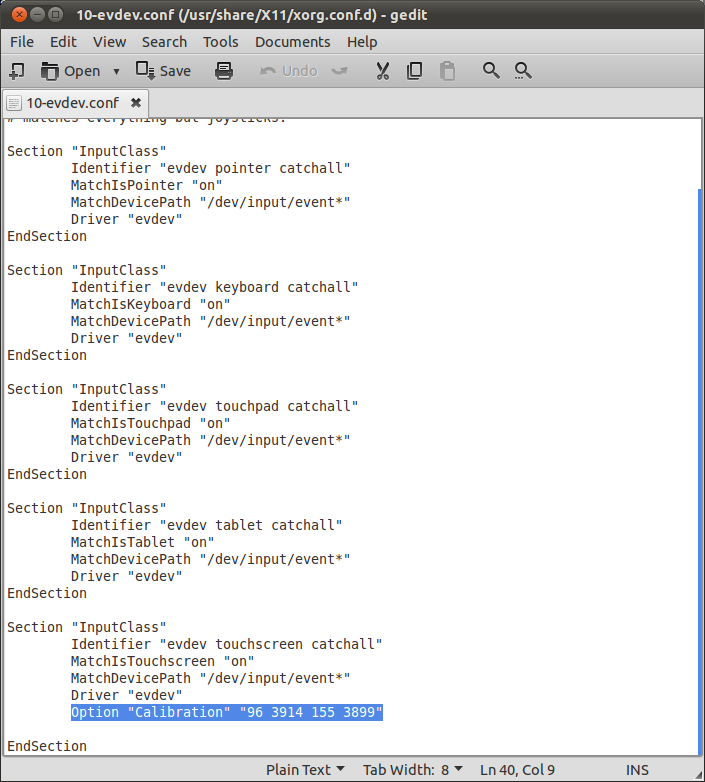

  • Then add calibration option settings obtained in Step 5 to the touchscreen InputClass section:
Option "Calibration" "96 3914 155 3899"

6. Logout to Restart X11.

  • Finally to enable your calibartion settings log out and back in again to restart X11.
